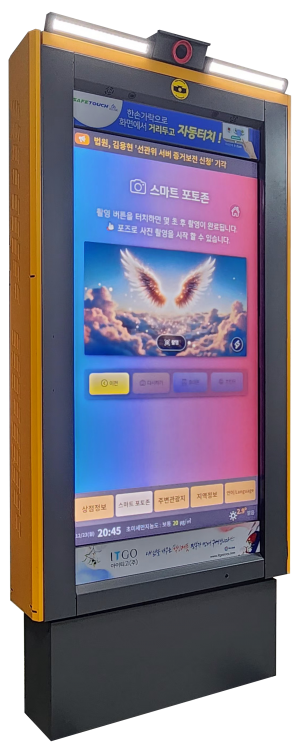

Products IRON SafeTouch(O)-55S2FC
◾ 55-inch 2-Bar touch sensor, front-opening
◾ Public Procurement Service Excellent Product
(registered with the National Marketplace)
◾ Camera-equipped (photo service provided)

The IRON-SafeTouch(O)-55S2FC is a smart signage from ITigo Co., Ltd. that utilizes SafeTouch technology, a non-contact touch function, and anti-solar filter technology. Designed for outdoor environments such as sunlight, snow, and rain, the product features a non-contact touch function. Furthermore, it is a multimedia smart signage that utilizes images captured by a camera to provide services such as background image synthesis, AI character synthesis, and emoticon synthesis. Beyond its digital information delivery capabilities, this experiential smart signage product enhances the enjoyment of users by enabling them to take and share photos.
Key Features
  • SafeTouch™ (Contactless Touch Function)

    IRON SafeTouch(O)-55S2FC support Safetouch technology enables users to recognize touch Interface without physically contacting the glass. The non-contact glass interface can protect users from common touchscreen issues (germ infection, dirt), which require contact with the glass surface.

  • Easy and Convenient Maintenance

    We designed IRON SafeTouch series with the basic concept of the convenience of maintenance, and the users can easily and quickly replace most units (controller, LCD, fan, cooler unit, touch sensor, etc.) at the operational sites and manage it by the central control unit. The system also can support remote alarm

  • 2-bar touch sensor

    Touch frame are consist of 2 Touch sensor bars.

  • Enhanced dual Cooling system

    IRON SafeTouch(O) has a dual cooling structure, and the heat exchanger cooer is applied inside the enclosure to increase the life of the cooling system. The cooling efficiency of the system is increased at a low cost by adding a front cooler separately. In particular, “Front Cooler” removes the inconvenience of users by blocking the heat transfer that high heat generated from a high-brightness (1,500 nit or more) panel display screen is transferred to a nearby touch user for touch use, which is a differentiated technology and protected by our patent.

  • Auto Time Set (Automatic Operation Mode)

    The touch display installed outdoors must undergo severe weather changes (four seasons) and be installed and operated remotely from the management site.
    IRON-SafeTouch(O) supports the “auto operation mode” function to provide convenience for remote equipment operation and reduce the failure rate for daily power on/off.
    - Remote automatic setting of equipment operation time (power on/off)
    - Operates in 3 levels of automatic mode to reduce equipment failure rate (Awake Mode ▶ Operate Mode ▶ Sleep Mode ▶ Awake Mode)
    ▪ After checking the operation status for each operation mode, it automatically switches to the next operation mode.

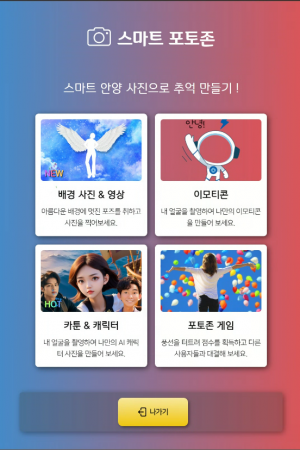

  • Photo Service

    Use the signage-mounted camera to take photos and combine them with various background images, AI characters, and emoticons. Users can also download the photos to their mobile phones.

  • User Access Detection

    When the user approaches, Touch function is enabled

  • Remote Control

    Provide remote control and monitoring function

Specification
Display size 55 inch
Brightness 2500 nit Max
Dimension (mm) 940(W)*2400(H)*320(D) @55inch Main Set
Weight 225kg
Operating Temperature -33℃ ~ +55℃
Ambient Humidity 10% ~ 100%
Thermal Cooling Control Dual Cooling Structure
∙ Display surface air-cooler (Front)
∙ Powerful air-exchange cooler(Rear 500W)
Direct Sunlight (heat) Acceptance Up to 1,200W/m2 @Display surface and SafeTouch Sensor
FAN Noise Typ. 30dBA, Max <43dBA @ front & side
Typ. 45dBA, Max <67dBA @ Rear
Input Power AC 100V ~ 240V @50/60Hz
External Connector Port AC Input 1 Port, Empty hall 1 Port
@Waterproof connector
Auto Time Set 3 step auto operation mode ( Awake / Operate / Sleep Mode )
Power Consumption Operate Mode : Typ. 350W / Max 800W Sleep mode : < 2W
Housing Structure (Enclosure & Touch) Seald enclosure(1.6mm thickness galvanized steel cover with powder coating)
Protection Grad IP66
Camera Web Cam
Light for photo shoot LED bar
Optical lens 46mm, waterproof/anti-reflective coating
Management Support NMS
(Network Management System)
Warranty 1 year( Extendable up to 5 years)
